Most steels used throughout Europe are specified to comply with the European standard EN 10025. However, many national standards also remain in force.
Typical grades are described as ‘S275J2’ or ‘S355K2W’. In these examples, ‘S’ denotes structural rather than engineering steel; 275 or 355 denotes the yield strength in newtons per square millimetre or the equivalent megapascals; J2 or K2 denotes the materials toughness by reference to Charpy impact test values; and the ‘W’ denotes weathering steel. Further letters can be used to designate fine grain steel (‘N’ or ‘NL’); quenched and tempered steel (‘Q’ or ‘QL’); and thermomechanically rolled steel (‘M’ or ‘ML’).
The normal yield strength grades available are 195, 235, 275, 355, 420, and 460, although some grades are more commonly used than others. In the UK, almost all structural steel is grades S275 and S355. Higher grades are available in quenched and tempered material (500, 550, 620, 690, 890 and 960 – although grades above 690 receive little if any use in construction at present).
A set of euronorms define the shape of a set of standard structural profiles:

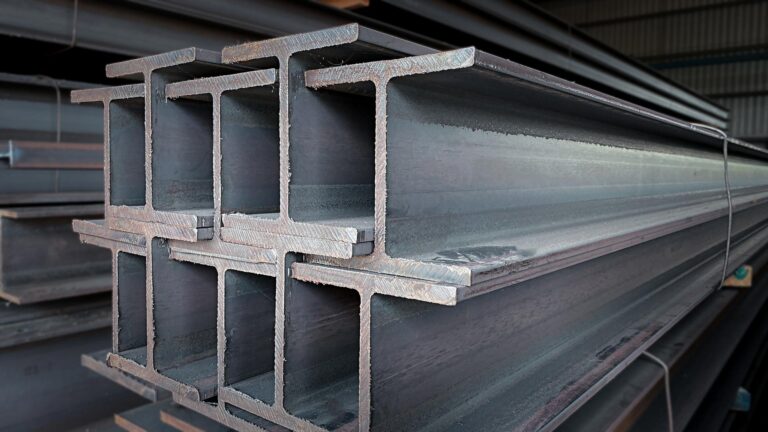

- European I-beam: IPE – Euronorm 19-57
- European I-beam: IPN – DIN 1025-1
- European flange beams: HE – Euronorm 53-62

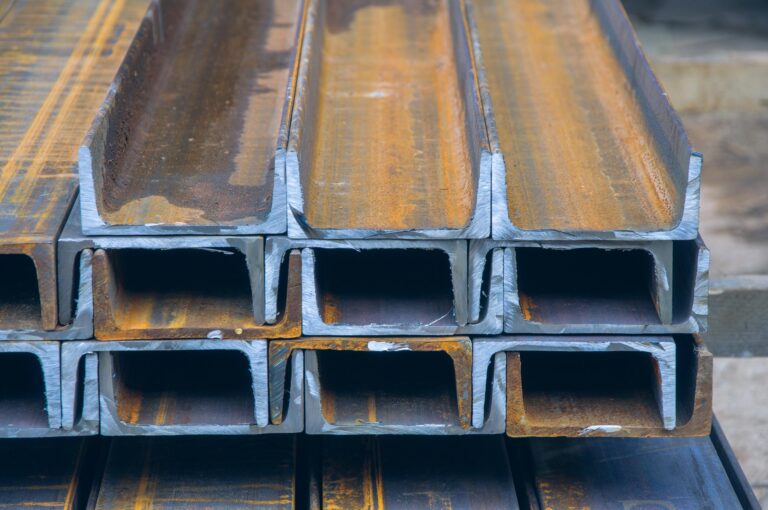

- European channels: UPN – DIN 1026-1
